Finisar QSFP Optical Transceiver Teardown Report   lumenci-element-rotor-1

Finisar QSFP Optical Transceiver banner

Teardown​ Analysis

FTL410QE4C QSFP+ optical transceivers are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 and breakout to four 10GBASE-SR.

Expected CAGR of 12.63% by 2025​

Finisar QSFP Optical Transceiver teardown

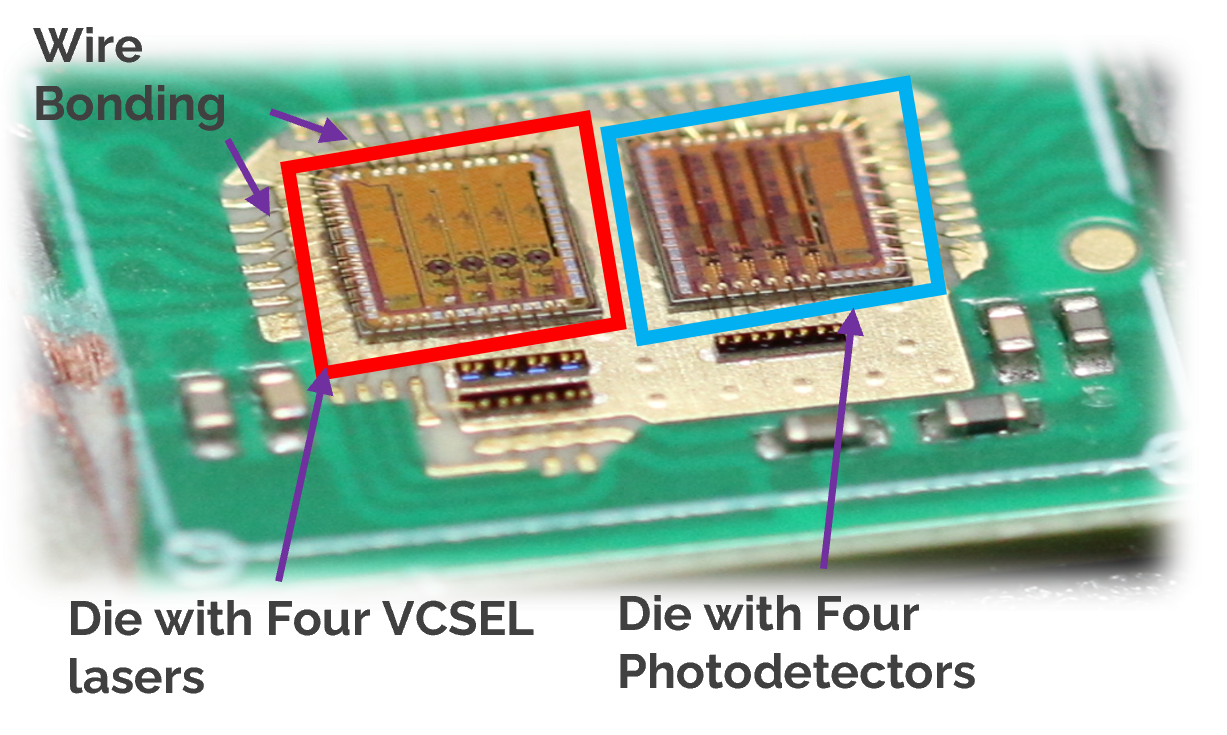

Finisar QSFP Optical Transceiver report

Our Teardown Report includes:

  • List of tools used for disassembly 
  • High-resolution pictures of each step of the teardown process 
  • High-resolution, scaled images of individual components  
  • A detailed description of complex hardware components and circuit boards  
  • Macro-scale pictures of PCBs, ICs, and on-board chips 
  • Library of technical documents for ICs, chips, and other components found inside the product

Tools for Disassembly​​

  • 3/32” Flat Head Screwdriver​
  • 1/8” Flat Head Screwdriver​
  • Ott-Lite TrueColor DualFlex Table Lamp​
  • T4 Torx Driver​
  • T5 Torx Driver​
  • 6-3/4” Slim Needle Nose Pliers (ProAmerica Model 5013)​
  • Dremel Tool with 545 Diamond Wheel (Diamond Particles Cutting Tool)​
  • Can Air / Air Duster (for clearing small particles)

Tools for Imaging ​

  • Canon EOS 70D DSLR Camera​
  • Canon EF-S 18 – 135 mm Zoom Lens​
  • Tamron SP 90mm F/2.8 Di Macro 1:1 Lens​
  • 2X-270X Zoom Trinocular Microscope with Digital Camera
